Anesthesia Circuit Filter Kit — Filter + Circuit Extensions
SKU: XY655K | Kit de Filtro para Circuito de Anestesia — Filtro + Extensiones
Precio referencial. Consulte con nuestro equipo para cotización exacta.
All-in-one anaesthesia circuit kit: a bacterial/viral HME filter (>99.9% efficiency), a 22 mm corrugated circuit extension and connection accessories. It cuts the number of components anaesthesia staff handle and guarantees filter-to-circuit compatibility. Ideal for high-volume surgical hospitals. Each kit is individually peel-packed and EO sterile.
Technical Specifications
Clinical Uses
- General anaesthesia with full circuit filtration
- Mechanical ventilation with passive humidification
- Reducing circuit set-up time in the operating room
Circuit filter kit vs sourcing filter and extension separately
| XY655K kit | Separate filter + extension | |
|---|---|---|
| Compatibility | Filter, extension and connectors pre-matched | Buyer verifies 22 mm fit across brands |
| Theatre set-up | One peel-pack per case | Two or three items to pick and open |
| Part numbers | One SKU per configuration | Separate SKUs, separate reorder points |
| Sterility | Whole assembly EO sterile in one pouch | Per item |
| Best for | High-volume surgical hospitals | Sites reusing an existing circuit stock |
The kit exists because a mismatched filter-to-circuit connection discovered at induction is an expensive way to save a few cents per component.
Frequently Asked Questions — Anesthesia Circuit Filter Kit — Filter + Circuit Extensions
What exactly is in the XY655K circuit filter kit?
The kit contains a 24-hour bacterial/viral HME filter, a 22 mm corrugated circuit extension and the connectors needed to complete the anaesthesia circuit — all in individual EO-sterile packaging.
Is the kit's filter compatible with the XY466 anaesthesia circuit?
Yes. All kit components are compatible with the standard XY466 circuit and with the anaesthesia circuits of major machine manufacturers. The connectors are 22 mm ISO.
How often should the kit be changed during surgery?
The whole kit is replaced between patients. In prolonged cases (>24 h of ventilation) the HME filter is replaced at 24 hours, while the circuit may stay if intact, per institutional protocol.
Is the filter an HME or an HMEF — and does the kit cover both jobs?
The kit filter combines both functions: bacterial/viral filtration (>99.9% BFE/VFE) plus heat-and-moisture exchange for passive humidification. That is the HMEF role — one part conditions inspired gas and protects the machine side of the circuit at the same time.
Can the kit be configured with a catheter mount or gas-sampling port?
Yes. A catheter mount, a gas-sampling (CO₂ monitoring) port on the filter, and a paediatric build are order options. Theatres usually standardise one adult and one paediatric configuration; send your protocol and we match the kit contents to it.
What documentation supports a hospital tender?
ISO 13485 and CE documentation, filtration-efficiency data for the filter, product IFU, EO-sterilisation validation and lot-traced cartons. All components are latex-free.
Request a Sample
Samples available for evaluation. Basic items: free sample. Higher-value items: a sample fee may apply. Shipping not included.
Full Description — Anesthesia Circuit Filter Kit — Filter + Circuit Extensions
Edaochi Medical's anaesthesia circuit filter kit (SKU XY655K) bundles the filter, extension and connectors a theatre needs into one peel-pack — fewer SKUs to pick, guaranteed compatibility, faster set-up.

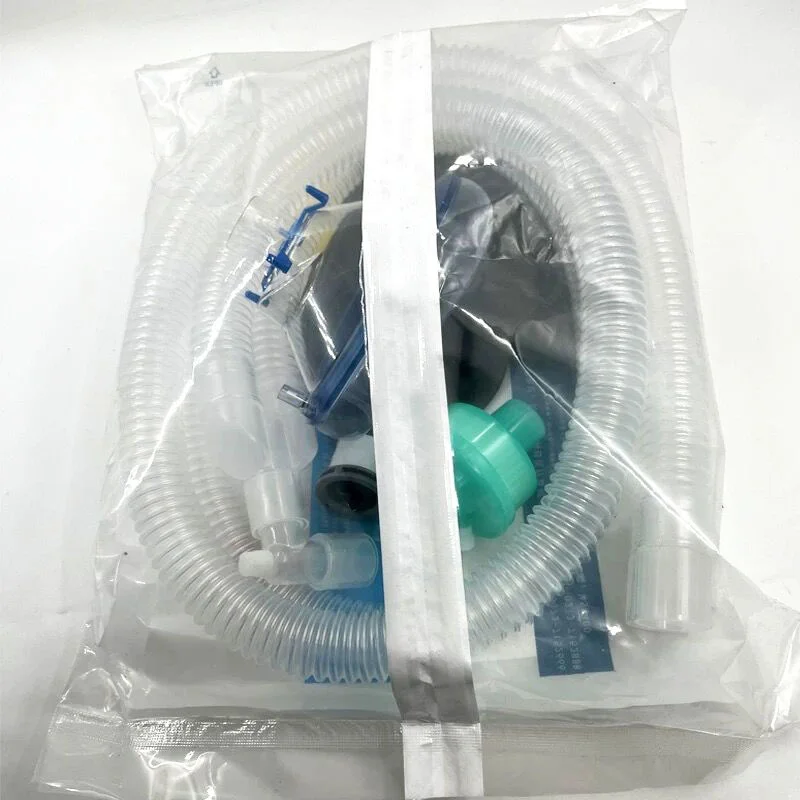

What's in the pack
- 24 h bacterial/viral HME filter (>99.9%) — conditions inspired gas and protects the circuit. - 22 mm corrugated circuit extension. - Connectors to complete the circuit.
Buying the parts together removes the mismatch risk of sourcing a filter and circuit separately, which is why high-volume surgical hospitals prefer it. Components are 22 mm ISO and compatible with the standard anaesthesia circuit. The kit is replaced between patients; in long cases swap the HME at 24 h — see our ventilator circuit change frequency guide.
Configurations theatres order
The base kit (filter + extension + connectors) covers routine general anaesthesia. Add a catheter mount where the theatre wants flexible articulation at the airway, a gas-sampling port for CO₂ monitoring lines, or the paediatric build with matching dead-space and connectors. Most hospitals standardise one adult and one paediatric configuration and order both on the same case programme.
Buying wholesale
Factory-direct, individually peel-packed and EO sterile, latex-free throughout. Configure the contents to your protocol; OEM and samples available. Box price and MOQ quote on WhatsApp within 24 h.
